5.9 Cummins Long Block Guide (2003–2007 Ram)

If you own a 2003–2007 Dodge Ram 2500 or 3500 with the famous 5.9 Cummins common-rail diesel, you already know why this engine is legendary: up to 325 hp, 610 lb-ft of torque, bulletproof construction, and the ability to tow 15,000+ lbs while lasting 300,000–500,000+ miles with good care. But heavy towing, high mileage, or skipped maintenance can cause serious wear: blown head gaskets, cracked cylinder heads, worn piston rings, low oil pressure, stretched timing parts, or failing bearings.

A full engine swap costs $12,000–$18,000+ and takes weeks. A quality 5.9 Cummins common-rail long block is the smarter, faster, and more affordable fix—it restores factory (or better) performance while you reuse your existing turbo, injectors, manifolds, CP3 pump, and accessories. This guide explains what a long block is, what to look for, key benefits, installation tips, and why the 4BTdiesel 5.9 Cummins Common Rail Long Block is a top choice for Ram owners.

Why the 2003–2007 5.9 Cummins Is Legendary

The 2003–2007 5.9L ISB introduced high-pressure common-rail injection, giving smoother power, better fuel economy, and cleaner emissions than the earlier 12-valve and VP44 24-valve engines. Factory highlights:

• Displacement: 5.9 liters (359 cu in)
• Inline-6, cast-iron block & head
• Power: 250–325 hp (year & transmission dependent)
• Torque: 460–610 lb-ft
• Compression: 17.2:1
• Turbo: Holset HE341CW (’03–’04) or HE351CW (‘04.5–’07)

This engine excels at towing, daily driving, and tuning—many owners safely run 500–700+ hp with bolt-ons. But common wear items eventually fail under heavy use. When they do, a long block is usually the most practical solution.

For official specs and history, see Cummins ISB 5.9 overview and Diesel Hub 2003–2007 5.9 Cummins guide.

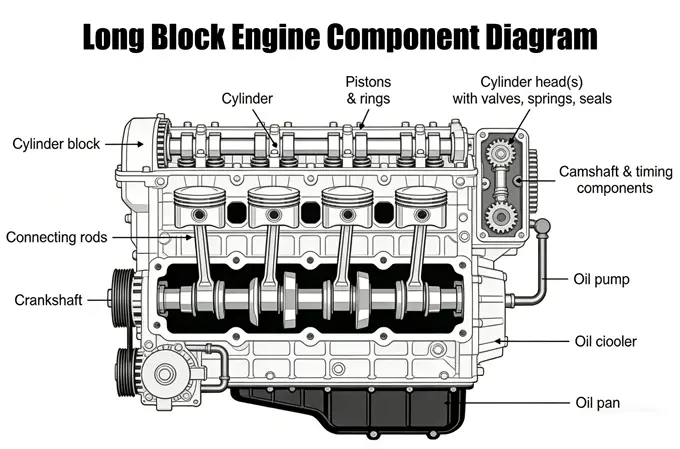

What Is a Long Block? (Quick Explanation)

A long block is a partially assembled engine core that includes:

• Cylinder block
• Crankshaft
• Connecting rods
• Pistons & rings
• Cylinder head(s) with valves, springs, seals
• Camshaft & timing components
• Oil pump, oil cooler, and often pre-installed oil pan

It does not include external parts (intake/exhaust manifolds, turbo, injectors, CP3 pump, sensors, wiring, etc.). You transfer your existing accessories—saving time and money compared to a full crate engine.

A short block only has the block, crank, rods, and pistons (cheaper but more labor). A full crate engine adds everything (more expensive, plug-and-play).

Long Block vs. Short Block vs. Full Crate Comparison

Data cross-checked from BD Diesel 5.9 Cummins buyer’s guide and Firepunk Diesel long block offerings.

What’s Inside the 4BTdiesel 5.9 Cummins Common Rail Long Block

The 4BTdiesel long block is built specifically for 2003–2007 Ram trucks and includes premium components:

• New Mahle/Dualloy pistons & high-performance rings
• Remanufactured cylinder head (crack-checked, pressure-tested, upgraded HD valve seats/guides, 3-angle valve job)
• Reconditioned crankshaft & rods (magnafluxed, polished, standard or oversized bearings)
• New oil pump, oil cooler, pre-installed oil pan
• Complete upper/lower gasket set, rear main seal, front crank seal
• Break-in oil & filter included for safe first start

This directly fixes the most common 5.9 common-rail failures (head gasket leaks, ring wear, bearing issues) while adding durability upgrades.

Key Benefits of a Quality Long Block Upgrade

1. Restores (or Improves) Factory Performance Fresh internals bring back smooth power, 610 lb-ft torque, and efficiency—perfect for towing, daily driving, or tuning.
2. Built Tougher Than Stock Precision machining, upgraded valve train, and clean-room assembly extend life beyond original—great for high-mileage or heavy-use trucks.
3. Big Cost Savings Typically $5,500–$9,500 vs. $12,000–$18,000+ for a full crate engine. Reuse your turbo, injectors, CP3, manifolds—lower labor too.
4. Direct Fit & Strong Warranty Bolt-in replacement for 2003–2007 Ram 5.9 common-rail trucks. Includes 2-year / 100,000-mile warranty (parts & labor; exclusions for improper install/oil starvation).
5. Optional Performance Upgrades Add ARP 625 head studs, HD valve springs, billet freeze plugs, billet valve covers for tuned applications (500–700+ hp safely).

Installation & Maintenance Tips

• Hire a Qualified Diesel Mechanic — Proper torque, timing, and leak checks are critical.
• Follow Break-In Procedure — Use included break-in oil; 500–1,000 easy miles, no heavy towing/high RPM.
• Oil & Filters — CJ-4/CK-4 15W-40 or 5W-40 synthetic; change every 5,000–7,500 miles (sooner if towing).
• Post-Install Checks — Monitor oil pressure, coolant, leaks, and warning lights regularly.
• Fuel System Care — Replace fuel filters often; use quality diesel to protect injectors and CP3 pump.

For more on 5.9 Cummins maintenance, see our 5.9 Cummins oil capacity guide.

Final Thoughts

When your 2003–2007 Ram’s 5.9 Cummins needs major work, a quality common-rail long block is the smartest path—restoring legendary power and torque without the full cost of a crate engine. The 4BTdiesel 5.9 Cummins Common Rail Long Block delivers precision remanufacturing, performance upgrades, a strong warranty, and direct fit for your truck.

Whether you tow heavy loads, work daily, or just enjoy the 5.9’s legendary feel, this long block brings your Ram back to life reliably and affordably.

Ready to upgrade? Visit 4BTdiesel today for details, optional upgrades, or to order.

Questions or a 5.9 Cummins story? Drop them in the comments!Disclaimer: Specs, costs, and fitment based on manufacturer data and industry sources. Always confirm with your VIN/ESN and a qualified mechanic.
