Cummins 4BT Rebuild Cost: Complete Engine Price Guide (2026)

Cummins 4BT rebuild cost is more than the price of a rebuild kit. The total depends on whether the block, crankshaft and cylinder head remain serviceable, and it can rise substantially when worn bores, damaged journals, a cracked head or a contaminated oil system appear during teardown.

The most useful number is not the lowest kit price. It is the cost of a rebuild scope that matches the actual engine. Before buying parts, identify the engine, inspect the reusable hard parts and obtain the machine shop measurements that control piston and bearing sizes. If you are already comparing components, start with the Cummins 4BT overhaul kit page, then use this guide to build a realistic total budget.

How Much Does a Cummins 4BT Rebuild Cost?

In many real-world situations, a 4BT owner first sees a rebuild kit advertised for less than $1,000 and assumes the complete job will cost roughly the same. That price usually covers only a defined group of internal parts. It does not automatically include inspection, machining, cylinder-head work, cleaning, assembly labor, engine removal, fluids or damaged accessories.

Current aftermarket listings show that common 4BT 3.9L in-frame and overhaul kits can fall roughly in the $500–$1,200 range, depending on the engine version and included components. A broader matched package or one that adds hard parts can move beyond that range. Cummins also explains that its MidRange overhaul kits contain the mandatory parts for a basic overhaul—pistons, rings, bearings, gaskets and liners where applicable—while the customer and service provider decide which additional components should be replaced or reused.

Repair Scenario	Planning Range	What Usually Drives the Number
Parts-only basic overhaul	$600–$1,400	Pistons, rings, bearings, gaskets and configuration
Owner assembly plus machine shop	$2,000–$5,500	Cleaning, measurement, bore work, crank work and head service
Professional complete rebuild	$5,000–$10,000+	Engine access, removal, teardown, machining, assembly, testing and installation
Major-damage rebuild	$8,000–$15,000+	Crankshaft, connecting rods, head, block repair, turbo, fuel system or oil-system damage

A shop should not be expected to guarantee a final total before teardown. A useful estimate separates known work from conditional work and states which measurements can change the parts list.

What Makes Up the Final Bill?

Cost Area	Typical Planning Allowance	Questions to Ask
Initial teardown, cleaning and inspection	$300–$900	Does this include crack inspection and a written measurement report?
Matched internal parts	$600–$1,400	Which pistons, bearing sizes, gaskets and seals are included?
Expanded rebuild parts	$1,200–$3,500+	Are the oil pump, camshaft, tappets, valves, bolts or timing parts being replaced?
Block, crankshaft and connecting-rod work	$500–$2,000+	Is honing enough, or are boring, sleeving, grinding or line work required?
Cylinder-head service	$500–$1,500+	Does the price include pressure testing, guides, seats, valves and resurfacing?
Removal, assembly and installation labor	$2,500–$6,500+	How accessible is the engine in this truck, generator, boat or machine?
Fuel, turbo, cooling and lubrication extras	$500–$3,500+	Which related systems caused or were damaged by the failure?

These allowances are not intended to replace local quotations. They show why two 4BT rebuilds can use similar piston and bearing sets but finish thousands of dollars apart.

The Kit Is Only One Part of the Cost

A standard overhaul package may include four pistons, four ring sets, a main-bearing set, a connecting-rod-bearing set and the required gasket groups. That is the center of the rebuild, but it is not a complete inspection result.

Items commonly priced separately include:

• Oil pump and pressure-regulating components
• Camshaft, tappets and cam bushings
• Connecting rods and small-end bushings
• Crankshaft replacement instead of polishing or grinding
• Cylinder-head valves, guides, seats, springs and injector sleeves where applicable
• Head bolts or other torque-critical fasteners when replacement is required
• Timing gears, cover components and front or rear seal wear surfaces
• Turbocharger, injectors and injection-pump work
• Water pump, thermostat, hoses and oil cooler service
• Filters, fluids, mounts and installation hardware

One common misunderstanding is that the phrase “complete overhaul kit” means everything required to return the entire engine and its accessories to service. In practice, “complete” describes that supplier’s kit contents. The workshop still has to decide what is reusable.

Machine Work Usually Decides Whether the Budget Holds

The correct piston and bearing sizes cannot be selected from the engine name alone. A machine shop should measure the bores, crankshaft journals, connecting rods, block deck and cylinder head before the final parts order is locked.

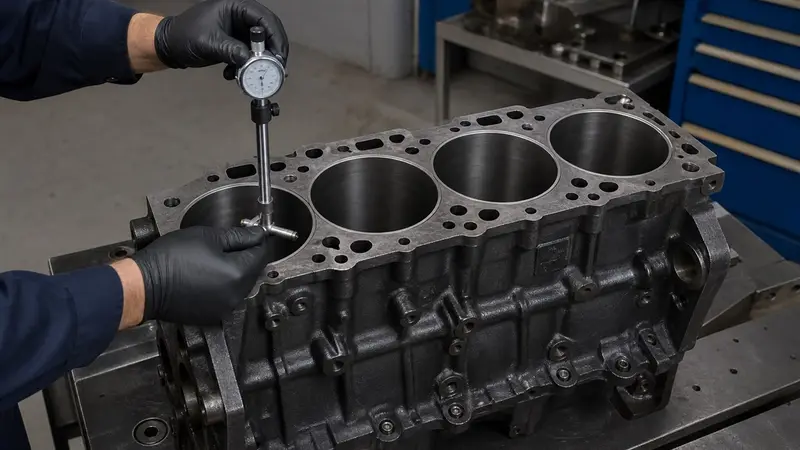

Cylinder bores

If the bores remain within a serviceable standard-size plan, cleaning and honing may be sufficient. Taper, out-of-round wear, deep scoring or a previous repair may require an oversize piston plan or repair sleeves. Four cylinders reduce the number of machining operations compared with a six-cylinder engine, but one damaged bore can still change the entire parts order.

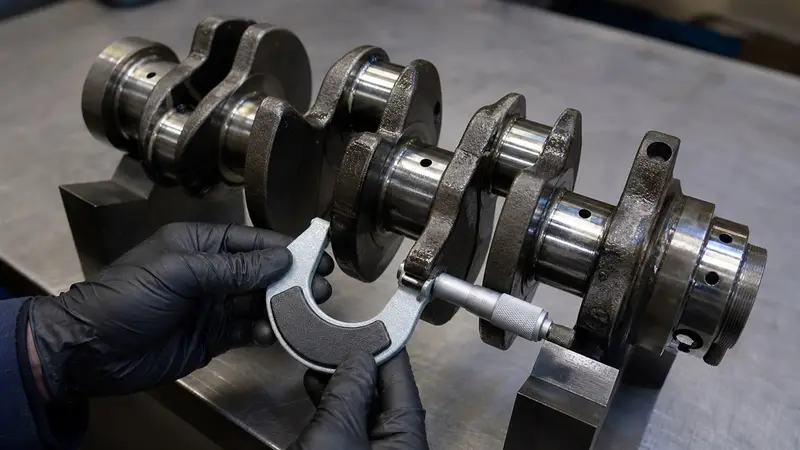

Crankshaft journals

A crankshaft that only needs inspection and polishing is much cheaper than one that requires grinding or replacement. The shop must state the finished journal size before standard or undersize main and connecting-rod bearings are ordered.

Connecting rods

Rod condition affects more than bearing choice. The technician should check alignment, big-end size, small-end bushings and the rod design used in that engine. Reusing an unmeasured rod to save money can turn a new piston and bearing set into a short-lived repair.

Cylinder head

A pressure test, flatness check and valve-train inspection should be treated as part of the rebuild decision. Surface damage, cracks, worn guides or poor valve sealing can raise the bill after the short-block parts have already been purchased.

In-Frame Repair or Full Rebuild?

An in-frame repair avoids some removal and installation labor, but it is not automatically the cheapest correct solution. It only makes sense when the repair scope can be measured and completed accurately with the engine installed, and when the block, crankshaft and related systems are suitable for that plan.

Decision Point	In-Frame May Be Reasonable	Full Removal Is Usually Safer
Block and bore condition	Wear is measurable and serviceable in place	Boring, sleeving, deck work or crack repair is needed
Crankshaft	Journals can remain in service after verified measurement	Crank removal, grinding or replacement is required
Contamination	Failure was contained and oil passages can be cleaned correctly	Metal or coolant has circulated throughout the lubrication system
Engine access	Equipment provides adequate working clearance	The installation makes accurate cleaning and assembly difficult
Repair goal	Controlled repair with known reusable components	Long-term reset with complete inspection and machine work

If a quote uses the word “in-frame,” ask which measurements will be taken, which parts remain installed and what warranty applies to reused components.

Symptoms That Justify Teardown—Not an Automatic Parts Order

High oil consumption, heavy blow-by, low hot oil pressure, compression imbalance, coolant in the oil, abnormal bearing noise or repeated overheating can all support a rebuild investigation. None of them identifies the correct kit by itself.

For example, low oil pressure may involve bearing clearance, the oil pump, a pressure-regulating component or internal leakage. White exhaust smoke may involve compression, injectors, coolant or operating temperature. A proper diagnosis prevents a shop from rebuilding the short block while leaving the cause of the failure untouched.

What to Confirm Before Ordering 4BT Rebuild Parts

Engine identification should be completed before teardown, while final size selection should wait until the engine has been disassembled and measured. Photograph the engine dataplate and record the ESN, CPL, and complete engine model first.

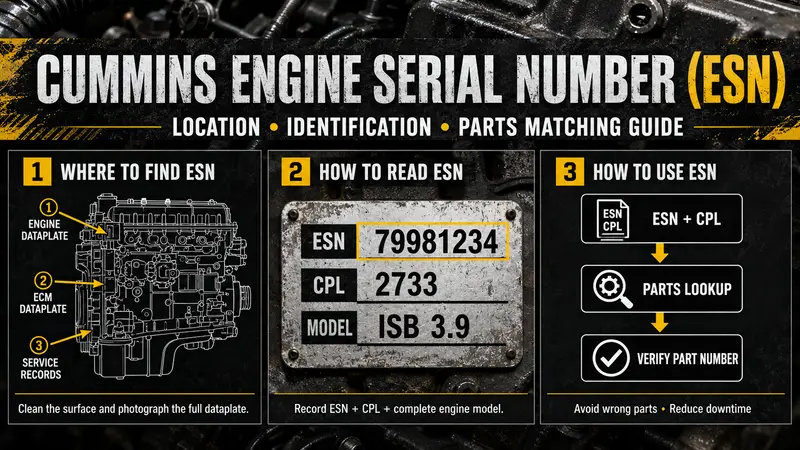

If you are unsure where to find these numbers, follow our Cummins Engine Serial Lookup guide. Then prepare the following:

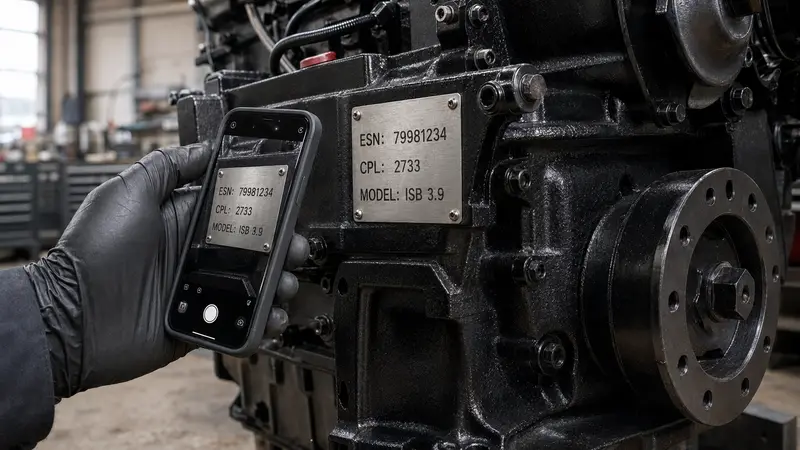

1. Engine Serial Number and clear dataplate photo. Cummins states that the ESN is normally found on the engine dataplate, commonly on the rocker cover or gear-housing area depending on configuration.
2. CPL and complete engine model. Do not submit only “4BT 3.9.”
3. Application. Record whether the engine is in a generator, industrial machine, marine installation, truck or conversion.

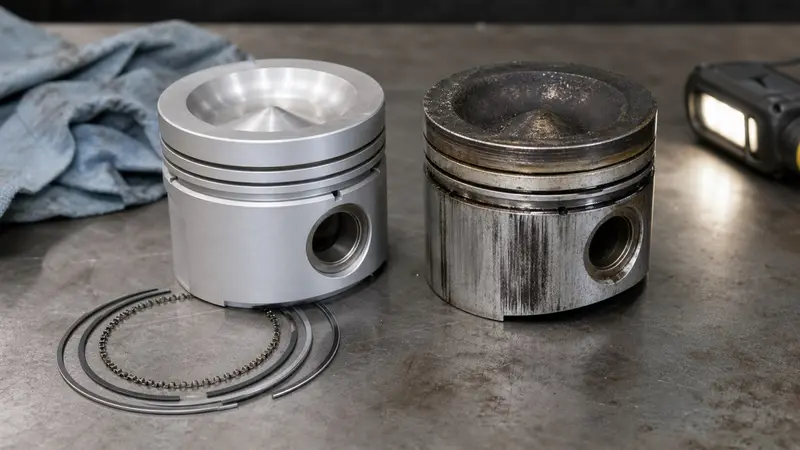

4. Current piston identification. Photograph the crown and record any visible part number or markings.
5. Bore measurements and repair plan. State standard, supported oversize or sleeve dimensions rather than guessing.
6. Main and rod journal measurements. Confirm the finished sizes after any crankshaft work.
7. Connecting-rod design and condition. Include photos and shop inspection results.
8. Gasket and head information. Record the removed gasket, head condition and any previous machining.
9. Requested scope. Separate mandatory internal components from the oil pump, timing parts, cylinder-head parts, fuel system, turbo and cooling system.

Cummins’ B3.9 overhaul reference demonstrates why this matters: different CPL groups are associated with different piston references and overhaul-kit numbers. Use the current engine record and removed-component information instead of treating one 4BT kit as universal.

When a piston or ring replacement is part of the plan, compare the confirmed configuration with the available 4BT piston options and piston-ring categories. Do not select either component from bore diameter alone.

How to Keep the Rebuild From Becoming More Expensive

Do not finalize sizes before machining

Ordering standard pistons and bearings before the shop measures the block and crank may create returns, delays or a compromise repair. Identify the kit family early, but finalize sizes from measurements.

Ask for an itemized inspection report

A useful report records bore size, taper and out-of-round; crank journal sizes; rod condition; deck flatness; and cylinder-head results. “Looks good” is not a measurement.

Find the cause of the original failure

A new bearing set will not survive an uncorrected lubrication problem. New pistons will not solve a contaminated intake, faulty injector or overheating system. Include the oil cooler, oil passages, turbocharger and fuel system in the failure analysis.

Compare rebuild cost with a replacement engine

If the block, crankshaft and head all require major repair, compare the final rebuild estimate with a correctly identified remanufactured or replacement engine. Include the core requirement, freight, installation changes, accessory transfer and warranty—not just the engine price.

Budget for downtime

For a working generator, excavator, loader or marine installation, downtime may cost more than the difference between two parts packages. Ask about parts availability and machine-shop scheduling before disassembly.

Questions to Ask Before Approving a Quote

• Which parts are new, reused, repaired or optional?
• Are the piston and bearing sizes confirmed or provisional?
• What machine work is included?
• Is cylinder-head testing included?
• Will the lubrication system and oil cooler be cleaned or replaced after a bearing failure?
• Are turbocharger, injector and injection-pump checks included?
• Does the labor include engine removal and installation?
• What happens to the estimate if the crankshaft or block fails inspection?
• What warranty applies to parts, machining and assembly?
• Which fluids, filters, freight and taxes are excluded?

The Bottom Line

A realistic Cummins 4BT rebuild cost is rarely just the advertised kit price. A serviceable core with measured standard components can stay near the lower end. Bore repair, crankshaft work, cylinder-head damage, difficult equipment access or contaminated related systems can move the job into the upper ranges quickly.

The best cost control happens before the parts order: identify the engine, inspect the failure, measure the reusable hard parts and request an itemized scope. That approach reduces wrong-size orders and makes competing quotes easier to compare.

Technical References

• Cummins MidRange Overhaul Kits
• Cummins Bulletin 5600511: B3.9 Overhaul CPL and Piston Reference
• Cummins QuickServe: Finding the Engine Serial Number
• Cummins QuickServe Online Parts and Service Information

Pricing note: ranges were prepared as planning estimates from current 2026 aftermarket kit listings and published North American machine-shop rate cards. Actual parts content, currencies, labor rates and repair conditions vary. Obtain written local quotations before authorizing work.
